Introduction
As Kubernetes adoption accelerates across enterprise environments, organizations are increasingly deploying workloads that extend beyond stateless web applications. Databases, messaging platforms, monitoring systems, distributed storage solutions, and other stateful services require operational knowledge that traditional deployment manifests cannot easily capture.
Earlier approaches to extending Kubernetes frequently required developers to implement Aggregated API Servers or Third Party Resources, introducing considerable operational complexity. Kubernetes 1.7 significantly improves this experience through the introduction of Custom Resource Definitions (CRDs) in Beta, providing a simpler and more maintainable method for extending the Kubernetes API.
At the same time, the emerging Operator pattern, introduced by CoreOS, demonstrates how Kubernetes controllers can automate complex operational tasks for distributed applications. By combining CRDs with custom controllers, enterprise teams can encode operational expertise directly into Kubernetes.
For enterprise architects, Kubernetes 1.7 represents an important milestone toward treating infrastructure automation and application operations as declarative software rather than manual administrative procedures.
Industry Background
Container orchestration has become a central component of modern cloud infrastructure. Enterprises are increasingly standardizing on Kubernetes for:
- ◆Microservices
- ◆Continuous Delivery
- ◆Private Cloud Platforms
- ◆Hybrid Cloud Deployments
- ◆API Platforms
- ◆Containerized Middleware
- ◆Monitoring Infrastructure
- ◆Distributed Storage Systems
While Kubernetes provides built-in resources such as Pods, Deployments, Services, StatefulSets, and DaemonSets, enterprise workloads frequently require domain-specific objects that describe business infrastructure.
The Business Problem
Organizations operating distributed platforms commonly encounter:
- ◆Manual operational procedures
- ◆Inconsistent deployment workflows
- ◆Application-specific administration
- ◆Difficult lifecycle management
- ◆Limited automation for stateful services
- ◆Complex scripting outside Kubernetes
Traditional manifests describe infrastructure but cannot capture the operational intelligence required for sophisticated distributed systems.
Understanding Custom Resource Definitions
# CustomResourceDefinition API schema to define a Database instance in Kubernetes 1.7
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: databases.shivamitcs.com
spec:
group: shivamitcs.com
version: v1
scope: Namespaced
names:
plural: databases
singular: database
kind: Database
shortNames:
- dbCustom Resource Definitions allow administrators to extend the Kubernetes API by defining entirely new resource types without implementing a dedicated API server.
After registering a CRD, Kubernetes automatically exposes REST endpoints for the new resource, allowing users to interact with it using familiar Kubernetes tools such as:
- ◆kubectl
- ◆API Server
- ◆RBAC
- ◆Labels
- ◆Selectors
- ◆Watch operations
This greatly simplifies Kubernetes extensibility.
Core Architecture
| Component | Responsibility |
|---|---|
| API Server | Exposes Kubernetes APIs |
| etcd | Stores cluster state |
| Custom Resource Definition | Defines new resource type |
| Custom Resource | Represents application-specific object |
| Controller | Watches resources and reconciles desired state |
| Scheduler | Places workloads on cluster nodes |
CRDs integrate naturally into the existing Kubernetes control plane.
How CRDs Work
- 1.Administrators register a Custom Resource Definition.
- 2.Kubernetes adds a new API endpoint.
- 3.Users create custom resources using YAML manifests.
- 4.Controllers monitor resource changes.
- 5.Controllers reconcile actual infrastructure with desired state.
- 6.Cluster status is continuously updated.
This follows Kubernetes' declarative reconciliation model.
The Emerging Operator Pattern
The Operator pattern extends Kubernetes by combining:
- ◆Custom Resource Definitions
- ◆Controllers
- ◆Domain-specific operational knowledge
Rather than documenting operational runbooks, Operators automate common administrative tasks such as:
- ◆Installation
- ◆Scaling
- ◆Backup coordination
- ◆Cluster recovery
- ◆Configuration updates
- ◆Rolling upgrades
This approach transforms operational procedures into reusable software.
Key Features
Custom Resource Definitions
CRDs simplify Kubernetes API extension while reducing development effort compared with earlier approaches.
Declarative Infrastructure
Administrators define desired application state while controllers maintain that state automatically.
Controller-Based Automation
Controllers continuously observe cluster events and reconcile infrastructure.
Kubernetes API Integration

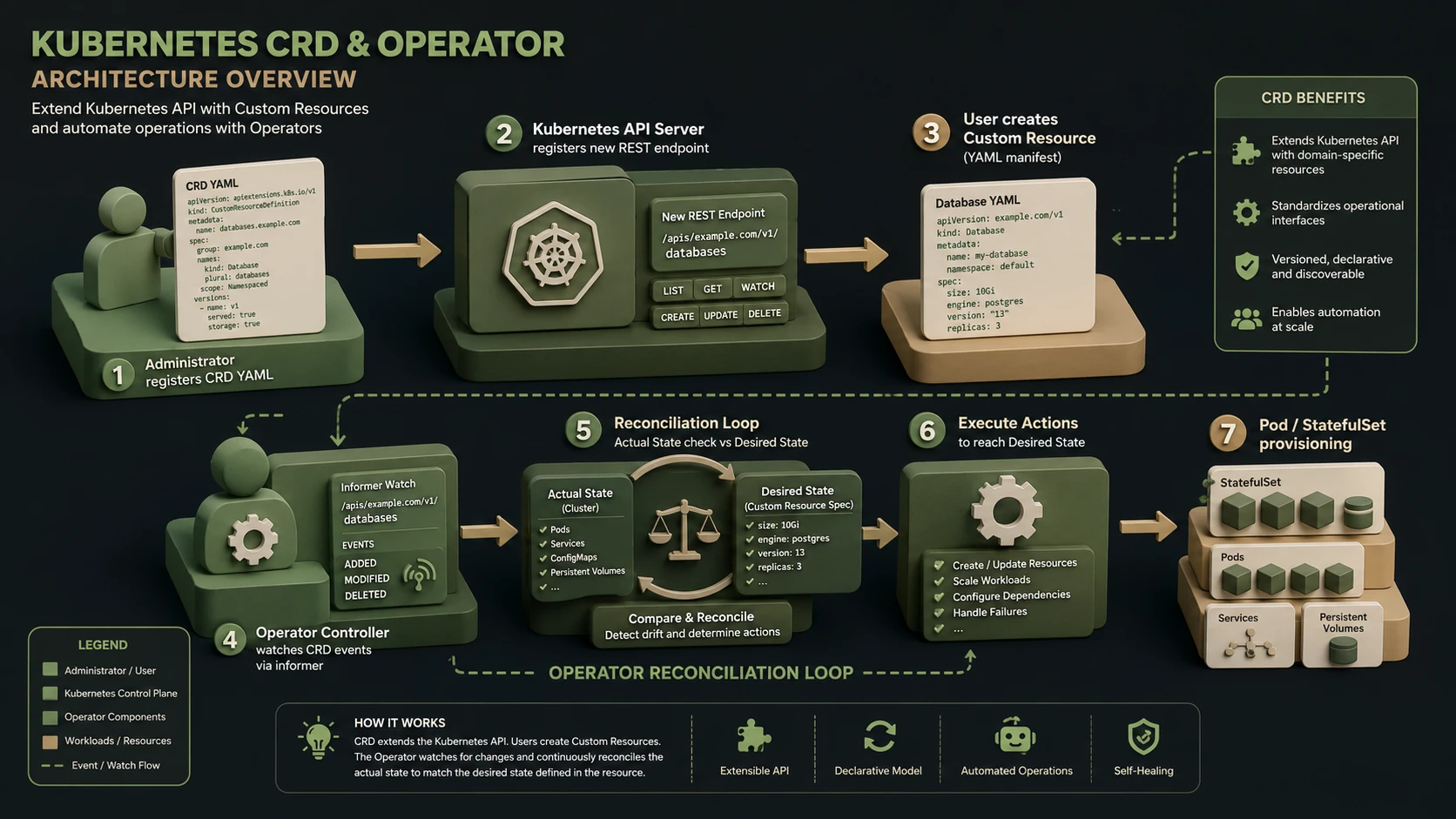

System architecture diagram and conceptual workflow layout for Kubernetes 1.7: Custom Resource Definitions (CRDs) and Operator Architectures.
Custom resources behave similarly to built-in Kubernetes objects.
Extensible Platform
Organizations can model business-specific infrastructure directly within Kubernetes.
Enterprise Use Cases
Database Automation
Database clusters can be represented as Kubernetes resources managed through dedicated controllers.
Messaging Platforms
Operational workflows for messaging systems can be automated using Operators.
Monitoring Platforms
Monitoring stacks become easier to deploy and manage declaratively.
Internal Platform Services
Infrastructure teams can expose standardized platform services through custom resources.
Compliance Automation
Controllers can continuously enforce enterprise operational policies.
Performance Considerations
CRDs introduce minimal overhead because they integrate with existing Kubernetes APIs.
Organizations should evaluate:
- ◆Controller efficiency
- ◆Reconciliation frequency
- ◆etcd storage growth
- ◆API request volume
- ◆Event processing
Well-designed controllers should perform incremental reconciliation rather than expensive full-cluster operations.
Security Considerations
Enterprise deployments should continue implementing:
- ◆Role-Based Access Control (RBAC)
- ◆Secure API authentication
- ◆Namespace isolation
- ◆Admission controls
- ◆Controller permission minimization
- ◆Audit logging
Controllers should operate with the minimum privileges required.
Scalability
CRDs inherit Kubernetes scalability characteristics while enabling platform extensibility.
Benefits include:
- ◆Declarative management
- ◆Distributed reconciliation
- ◆Automated operations
- ◆Reusable platform components
- ◆Consistent resource management
Best Practices
- ◆Design CRDs around business concepts.
- ◆Keep controllers idempotent.
- ◆Follow Kubernetes API conventions.
- ◆Validate resource specifications.
- ◆Monitor reconciliation performance.
- ◆Document custom resource schemas.
- ◆Apply least-privilege RBAC.
- ◆Introduce Operators gradually.
Common Mistakes
| Mistake | Enterprise Impact |
|---|---|
| Embedding business logic inside manifests | Reduced maintainability |
| Overly complex controllers | Operational instability |
| Ignoring reconciliation principles | Inconsistent cluster state |
| Excessive controller permissions | Increased security risk |
| Poor CRD schema design | Difficult long-term evolution |
| Skipping operational monitoring | Reduced reliability |
Technology Comparison
| Capability | Built-in Kubernetes Resources | Custom Resource Definitions |
|---|---|---|
| Resource Types | Fixed | Extensible |
| Domain Modeling | Generic | Application Specific |
| API Integration | Native | Native After Registration |
| Controller Support | Yes | Yes |
| Enterprise Extensibility | Limited | High |
| Operational Automation | General Purpose | Domain Specific |
Adoption Strategy
- 1.Identify repetitive operational workflows.
- 2.Model domain concepts as custom resources.
- 3.Implement reconciliation controllers.
- 4.Apply RBAC policies.
- 5.Test failure scenarios.
- 6.Monitor controller behavior.
- 7.Standardize internal platform APIs.
- 8.Expand Operator adoption incrementally.
Limitations
As of July 2017, Custom Resource Definitions are available in Beta and represent a significant improvement over earlier Kubernetes extension mechanisms. Organizations should evaluate schema evolution, controller reliability, and operational tooling carefully before deploying mission-critical extensions at scale. The Operator pattern is still emerging, and enterprise implementation guidance continues to mature.
Looking Ahead
From the perspective of July 2017, Kubernetes 1.7 marks an important step toward making Kubernetes an extensible application platform rather than solely a container orchestrator. Custom Resource Definitions simplify API extensibility, while the emerging Operator pattern demonstrates how operational expertise can be encoded directly into controllers. Together, these capabilities are expected to encourage a new generation of enterprise automation built upon Kubernetes' declarative infrastructure model.
