OAuth 2.0 RFC 6749: Standardizing Authorization for Web APIs

Introduction

The rapid growth of cloud computing, Software as a Service (SaaS), mobile applications, and web APIs has fundamentally changed how enterprise applications communicate. Organizations are increasingly exposing services over HTTP, enabling partners, customers, and internal applications to integrate through standardized interfaces.

While this connectivity creates new business opportunities, it also introduces an important security challenge: allowing one application to access protected resources on behalf of a user without requiring the user to share credentials directly with that application.

Historically, many integrations solved this problem by requesting users' usernames and passwords. Although simple to implement, this approach creates significant security and operational risks, including excessive privilege, credential reuse, and limited control over delegated access.

OAuth 2.0, standardized as RFC 6749 by the Internet Engineering Task Force (IETF), provides a framework for delegated authorization. Rather than exposing user credentials, applications obtain access tokens representing limited permissions granted by a resource owner.

For enterprise architects designing service-oriented systems and API platforms, OAuth 2.0 establishes an important foundation for secure, scalable authorization.

Industry Background

Web applications increasingly rely on APIs to exchange information across organizational boundaries. Social networking platforms, online storage providers, enterprise SaaS vendors, and cloud services all require mechanisms that allow third-party applications to access protected resources while maintaining user control.

OAuth 1.0 introduced an authorization framework addressing this challenge, but many developers found its cryptographic signing requirements difficult to implement consistently.

OAuth 2.0 represents a significant redesign intended to simplify implementation while supporting a broader range of client applications, including browser-based software, mobile applications, desktop clients, and server-side web applications.

The publication of RFC 6749 provides a standardized framework that organizations can evaluate for securing modern HTTP-based services.

The Business Problem

Enterprise integration frequently requires delegated access to protected resources.

Common scenarios include:

• ◆Third-party applications accessing user data
• ◆Mobile applications consuming enterprise APIs
• ◆Cloud services integrating with business platforms
• ◆Partner portals retrieving protected information
• ◆Internal services communicating across organizational boundaries

Without a delegation framework, applications often rely on shared credentials.

This approach introduces several risks:

• ◆Password disclosure
• ◆Excessive application privileges
• ◆Difficult credential revocation
• ◆Limited auditing
• ◆Increased security exposure

OAuth 2.0 addresses these issues by separating authorization from authentication and introducing token-based delegated access.

Understanding OAuth 2.0

OAuth 2.0 is an authorization framework rather than an authentication protocol.

Its primary objective is to enable applications to obtain limited access to protected resources without exposing user credentials.

Instead of supplying usernames and passwords directly to every application, users authorize access through an authorization server.

Upon successful authorization, the client application receives an access token that can be presented to the resource server when requesting protected resources.

This architecture enables controlled delegation while reducing credential exposure.

Core Architecture

OAuth 2.0 defines several participating roles.

By separating these responsibilities, OAuth 2.0 enables flexible authorization across a wide range of deployment scenarios.

Authorization Flows

OAuth 2.0 defines multiple authorization grant types designed for different application models.

Authorization Code Grant

Designed primarily for server-side web applications.

General workflow:

1. 1.User is redirected to the authorization server.
2. 2.User grants permission.
3. 3.Authorization server returns an authorization code.
4. 4.Client exchanges the code for an access token.
5. 5.Client accesses protected resources.

This approach keeps access tokens off the user's browser during the exchange process.

Implicit Grant

Intended for browser-based applications where client-side execution makes confidential credential storage impractical.

The authorization server returns an access token directly to the client application after successful authorization.

Resource Owner Password Credentials Grant

In situations where a strong trust relationship exists between the client and resource owner, credentials may be exchanged directly for an access token.

Organizations should evaluate this grant carefully and apply it only where appropriate.

Client Credentials Grant

// Client Credentials flow HTTP token request structure (application/x-www-form-urlencoded)
POST /oauth/token HTTP/1.1
Host: identity.shivamitcs.com
Authorization: Basic M2Q4OTVhMj... (Base64 encoded client_id:client_secret)
Content-Type: application/x-www-form-urlencoded

grant_type=client_credentials&scope=read:orders

Designed for server-to-server communication where the client acts on its own behalf rather than representing an individual user.

This model is well suited for service integrations and scheduled background processes.

Access Tokens

Access tokens are central to the OAuth 2.0 framework.

Rather than presenting usernames and passwords to every protected service, applications present access tokens issued by the authorization server.

Access tokens typically provide:

• ◆Limited privileges
• ◆Controlled lifetime
• ◆Delegated authorization
• ◆Simplified revocation

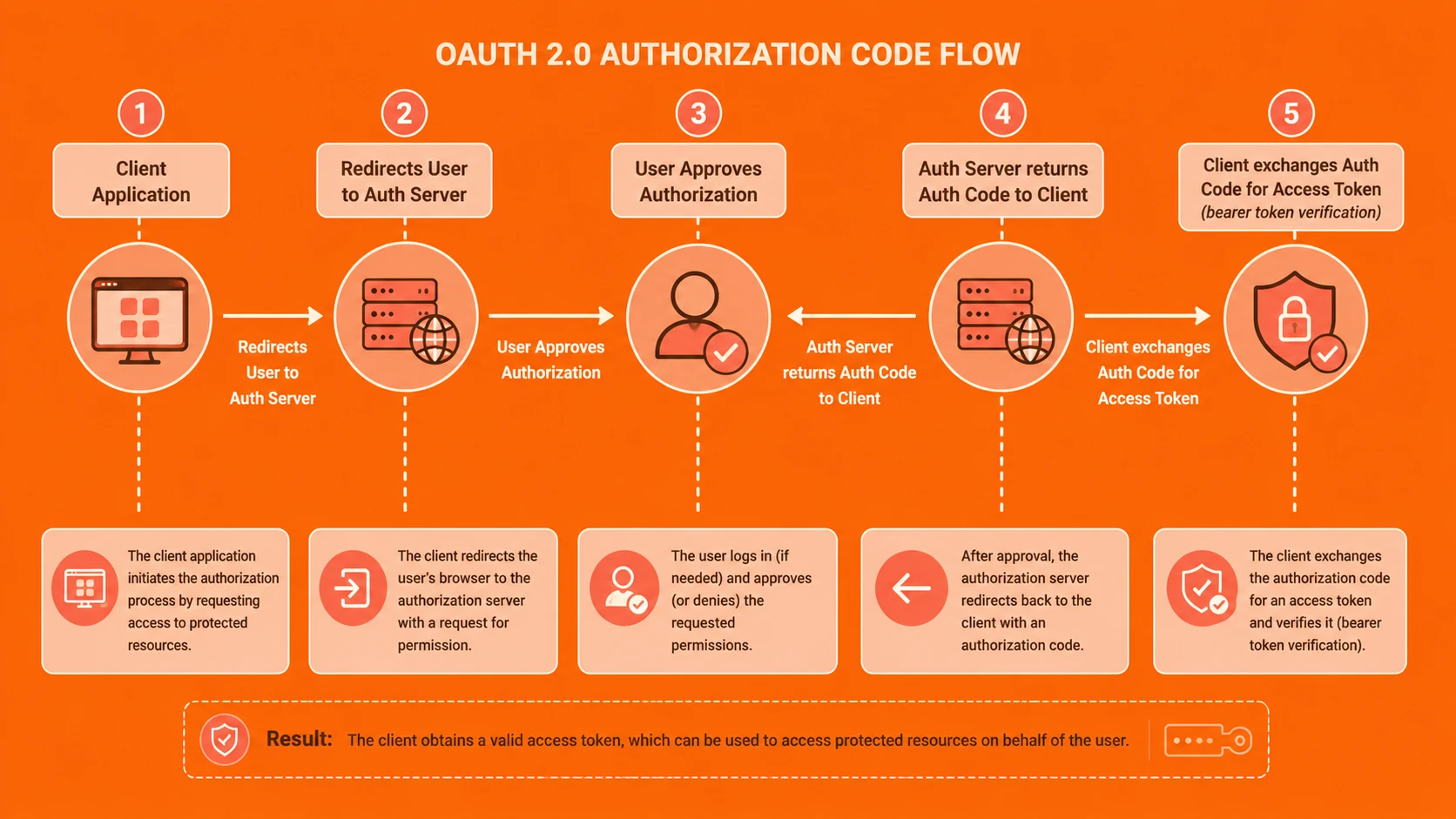

System architecture diagram and conceptual workflow layout for OAuth 2.0 RFC 6749.

The internal structure of an access token is intentionally unspecified by the specification, allowing implementations to choose formats appropriate for their environments.

Scope-Based Authorization

OAuth 2.0 introduces the concept of scopes to represent the permissions granted to a client.

Examples include:

• ◆Read profile information
• ◆Access calendar data
• ◆Retrieve customer records
• ◆Update business documents

By limiting tokens to specific scopes, organizations can reduce the impact of token misuse while supporting the principle of least privilege.

Enterprise Use Cases

OAuth 2.0 supports numerous enterprise scenarios.

Organizations exposing HTTP APIs can apply OAuth 2.0 across both public and private integration environments.

Performance Considerations

Authorization introduces additional request processing during token acquisition, but subsequent API requests typically rely on access tokens rather than repeated credential validation.

Architects should consider:

• ◆Token validation performance
• ◆Authorization server capacity
• ◆Token lifetime configuration
• ◆API request throughput
• ◆Secure storage of issued tokens

Careful infrastructure planning helps ensure that authorization services do not become bottlenecks.

Security Considerations

OAuth 2.0 provides a flexible authorization framework, but secure implementation remains essential.

Organizations should:

• ◆Protect communication using HTTPS.
• ◆Validate redirect URIs carefully.
• ◆Limit token lifetimes where appropriate.
• ◆Protect client credentials.
• ◆Implement least-privilege scopes.
• ◆Monitor authorization activity.
• ◆Revoke compromised tokens promptly.

Developers should recognize that OAuth 2.0 governs authorization and should not be assumed to provide user authentication by itself.

Scalability

OAuth 2.0 is designed to support internet-scale authorization.

Scalability advantages include:

• ◆Token-based authorization
• ◆Decoupled authorization services
• ◆Flexible client support
• ◆Stateless API requests using access tokens
• ◆Standardized delegation model

As organizations expand API ecosystems, separating authorization from application logic simplifies long-term architecture.

Best Practices

Organizations adopting OAuth 2.0 should establish governance policies before production deployment.

Recommended practices include:

• ◆Select the appropriate authorization grant for each client type.
• ◆Protect all authorization traffic with HTTPS.
• ◆Issue tokens with minimal required privileges.
• ◆Implement token expiration policies.
• ◆Validate all redirect endpoints.
• ◆Secure client credentials.
• ◆Audit authorization activity.
• ◆Document API authorization requirements.

Security policies should evolve alongside application architecture.

Common Mistakes

Early implementations may encounter several architectural issues.

Common mistakes include:

• ◆Treating OAuth as an authentication protocol.
• ◆Granting excessive token permissions.
• ◆Exposing client credentials.
• ◆Ignoring HTTPS requirements.
• ◆Using long-lived tokens unnecessarily.
• ◆Failing to validate redirect URIs.
• ◆Implementing inconsistent authorization policies.

Successful deployments require both standards compliance and disciplined operational practices.

Technology Comparison

OAuth 2.0 represents a significant improvement over direct credential sharing for delegated authorization scenarios.

Adoption Strategy

Organizations should introduce OAuth 2.0 through a structured rollout.

Recommended approach:

1. 1.Identify APIs requiring delegated authorization.
2. 2.Define authorization scopes.
3. 3.Deploy an authorization server.
4. 4.Select appropriate authorization grants for each client type.
5. 5.Integrate token validation into resource servers.
6. 6.Monitor authorization events and operational performance.

A phased implementation allows teams to refine governance before expanding authorization across additional services.

Limitations

Although OAuth 2.0 provides a flexible authorization framework, organizations should evaluate several considerations.

Current limitations include:

• ◆Correct implementation requires careful security design.
• ◆Different client types require different authorization grants.
• ◆Token lifecycle management introduces operational complexity.
• ◆Organizations must distinguish authorization from authentication when designing security architectures.

Proper planning and governance remain essential for successful deployments.

Looking Ahead

The publication of RFC 6749 establishes OAuth 2.0 as an important milestone in the evolution of secure web API authorization. As cloud platforms, mobile applications, and service-oriented architectures continue to expand, standardized delegated authorization is expected to become increasingly valuable for enterprise software development.

For organizations designing modern HTTP services in late 2012, OAuth 2.0 provides a flexible framework capable of supporting a wide variety of client applications while reducing reliance on direct credential sharing. Careful implementation, combined with sound security practices, can help organizations build scalable authorization infrastructures that support the next generation of web-connected enterprise systems.
